Y Strainer

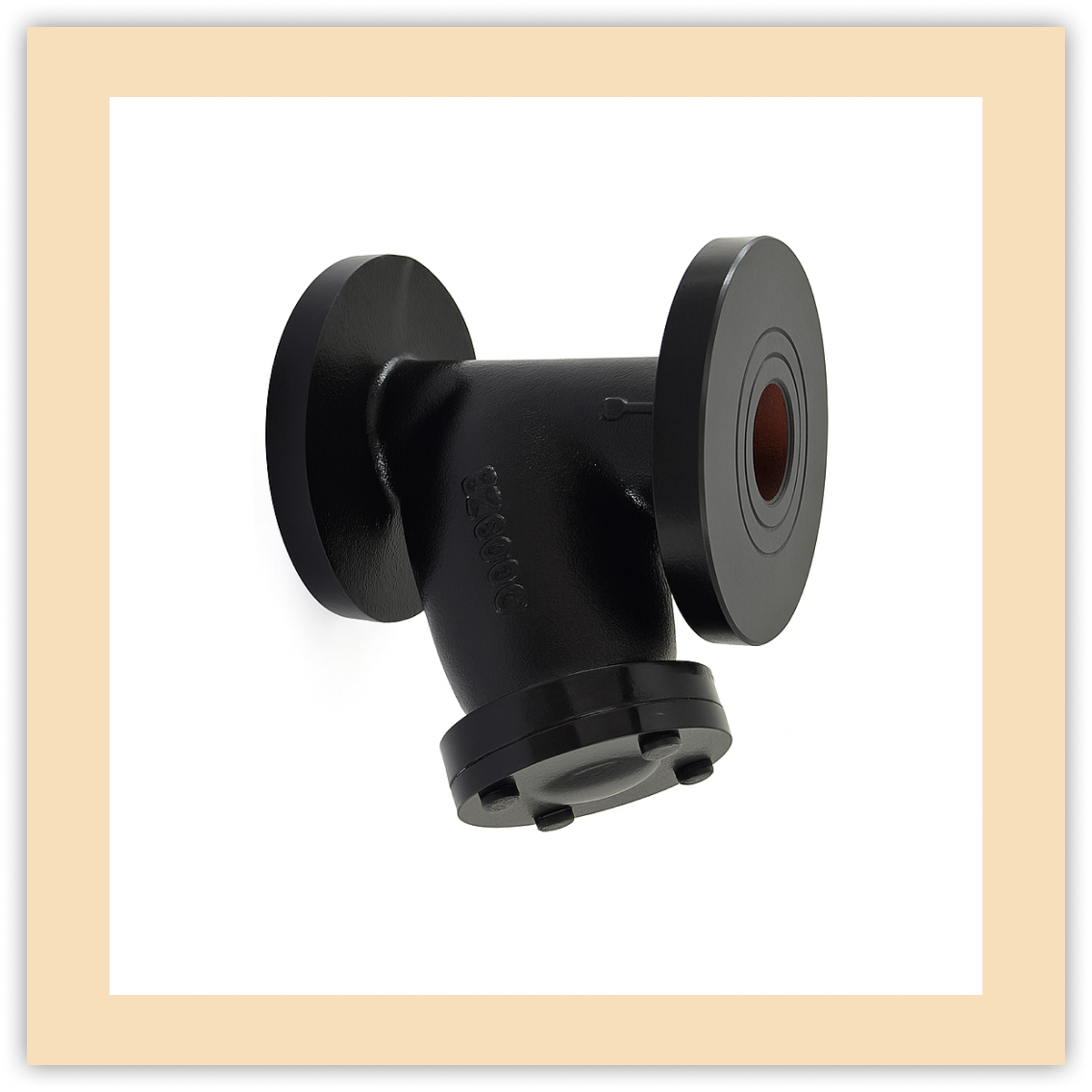

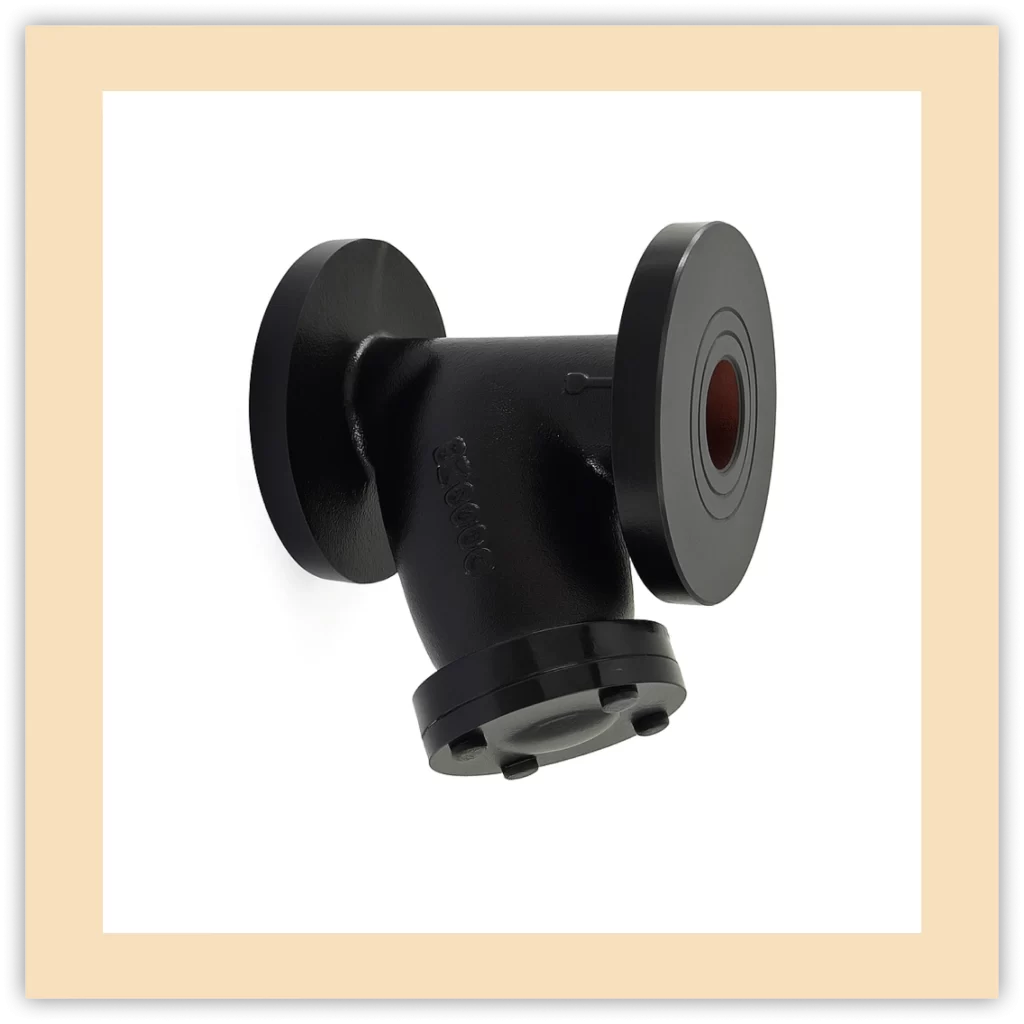

Cast Iron Y-Type Strainer PN 16 (Flanged) (Art - 1084)
- Flanged Ends to BS 10 Table ‘F’.
- Stainless Steel (S.S 304) perforated sheet screen (Ø3 mm Perforation) is guided in body and cover.
- Large screening area makes the strainer efficient in performance.
- Minimum pressure drop inside the body due to streamlined body contours.
- Test Pressure (Hydrostatic):
- Shell : 15 kg/cm²g (220 psig)
- Maximum Working Pressure : 10 kg/cm²g (150 psig)
- Maximum Working Temperature : 220°C
Cast Iron Y-Type Strainer, PN 16 (Flanged) (Art - 1084A)
- Flanged Ends to BS 10 Table ‘F’.
- Stainless Steel (S.S 304) perforated sheet screen (Ø3 mm Perforation) is guided in body and cover.
- Large screening area makes the strainer efficient in performance.
- Minimum pressure drop inside the body due to streamlined body contours.
- Test Pressure (Hydrostatic):
- Shell : 24 kg/cm²g (340 psig)
- Maximum Working Pressure : 16 kg/cm²g (225 psig)
Bronze Y-Type Strainer (Screwed) (Art - 1053)
- Screwed Female Ends to BSPT.
- Stainless Steel (S.S 304) Ø1 mm perforated sheet screen is guided in the body and cover.
- Fine finish and smooth contours reduce pressure drop in the strainer.
- Large screening area makes the strainer efficient in performance.
- Test Pressure (Hydrostatic):
- Shell : 35.15 kg/cm²g (500 psig)
- Working Pressure (Steam) : 17.58 kg/cm²g (250 psig)
- Maximum Working Temperature : 225°C
