TRAX Valves

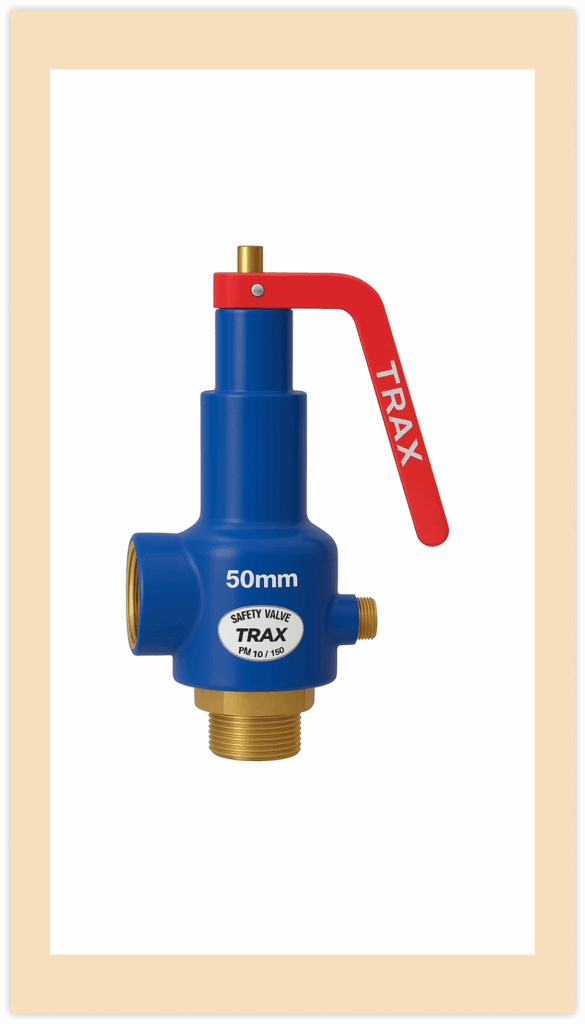

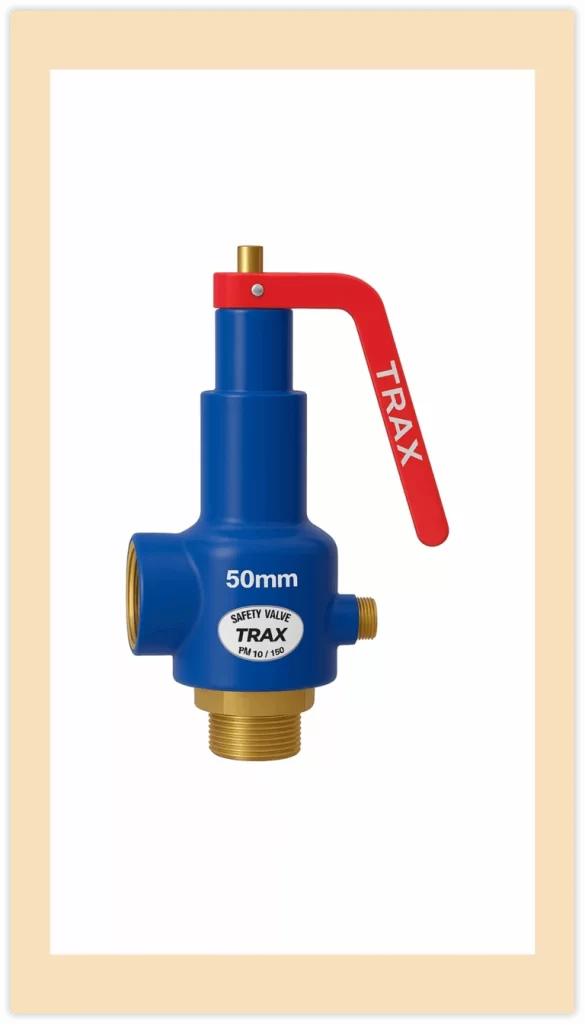

Spring Loaded Safety Valve
The spring-loaded safety valve is a precision-engineered valve designed to provide reliable overpressure protection in pipelines and equipment. It is constructed with a bronze or stainless steel body and disc (CC 491K / CF8), a durable SG Iron chamber (ASTM A536–1980), and a high-strength stainless steel spring (IBR–307) for consistent performance. Key components such as the stem, locking screw, and regulating ring are crafted from brass or stainless steel (CZ–114 / AISI 304), ensuring corrosion resistance and long service life. With its robust design, the valve guarantees safe, accurate, and efficient pressure release in a wide range of industrial applications.
Technical Specifications:
- HYDRAULIC TEST PRESSURE 300 psig
- STEAM WORKING PRESSURE 150 psig
- MAXIMUM ALLOWABLE TEMP. 225°C

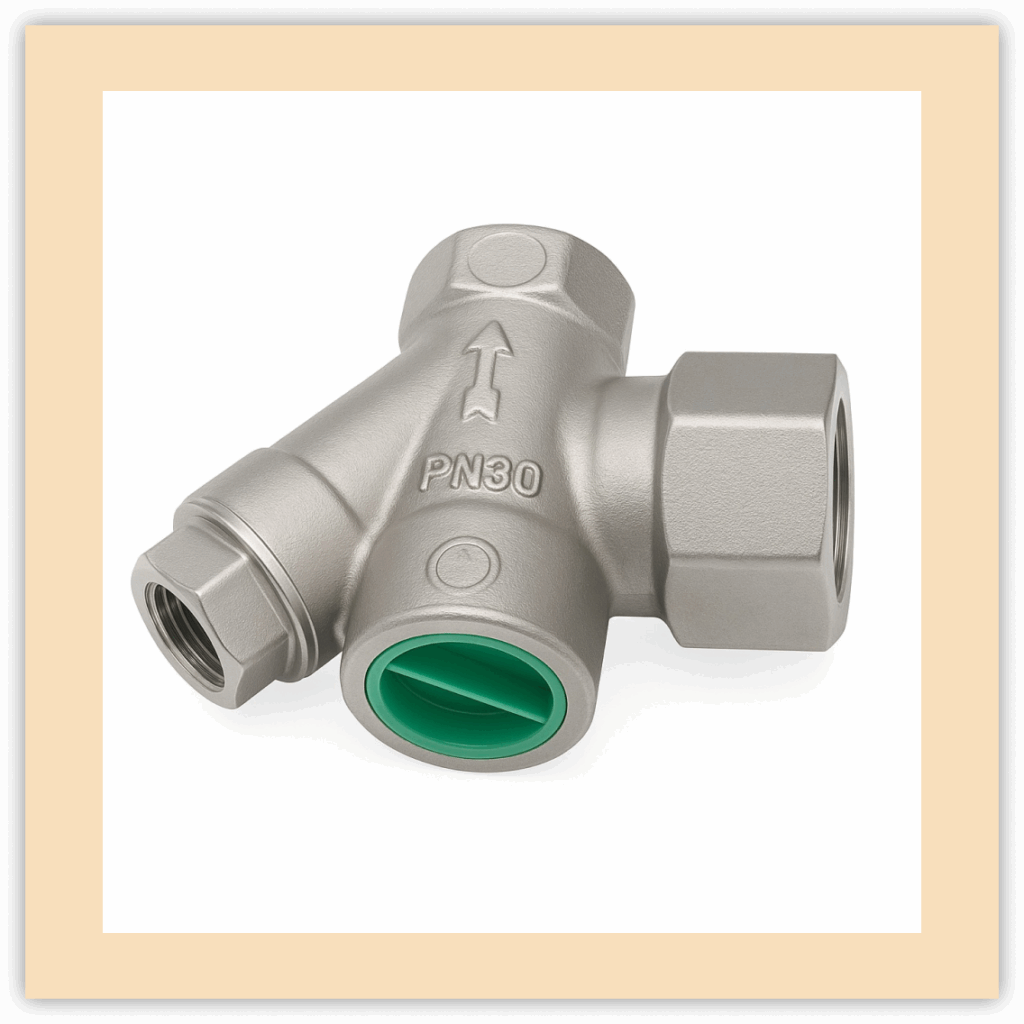

Thermodynamic Steam Trap
Thermodynamic Steam Trap Valve:
The thermodynamic steam trap valve is designed for efficient condensate discharge while preventing steam loss, ensuring reliable operation in high-pressure steam systems. Constructed with stainless steel ASTM A743 Gr.CA–40 body, top cover, disc, and strainer cap, it offers excellent durability and resistance to thermal and mechanical stress. A stainless steel AISI 304 strainer screen ensures effective filtration, while a CAF gasket (ISL: 2712 Gr. w/1) provides a secure seal. This compact, robust design is suitable for a wide range of industrial steam applications, combining long service life with minimal maintenance.
Stainless Steel THERMODYNAMIC STEAM TRAP WITH INBUILT STRAINER SCREWED FEMALE ENDS TO BSPT / BSP / NPT / SOCKET WELD
Technical Specifications:
- BODY TEST PRESSURE 63.2 Kg/cm² (900 Psig) Hyd. PRESSURE 150 psig
- STEAM WORKING PRESSURE 31.6 Kg/cm² (450 Psig)
- MAXIMUM ALLOWABLE TEMP. 425°C
Salient Features:
- HARDENED DISC – TO WITHSTAND CONTINUOUS WATER HAMMERING
- ALL STAINLESS STEEL CONSTRUCTION – BETTER MECHANICAL PROPERTIES
- SEAT INTEGRAL WITH BODY – NO POSSIBILITY OF LEAKAGE FROM JOINTS
- INBUILT STRAINER – AVOIDS CLOGGING
